Ultra-Low-Power Ultrasonic wind meter SUMMIT (ULP SUMMIT)

Ultra-Low-Power Ultrasonic wind meter SUMMIT (ULP SUMMIT).

Wind meter, a 45m/s IoT, Ultra-Low Power Ultrasonic Anemometer:

     Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 0,25 mA @5V, 1Hz)

     (Further protocols under request).

Power Consumption will be affected depending on the baudrate & output rate chosen

The ULP represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.

• Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.

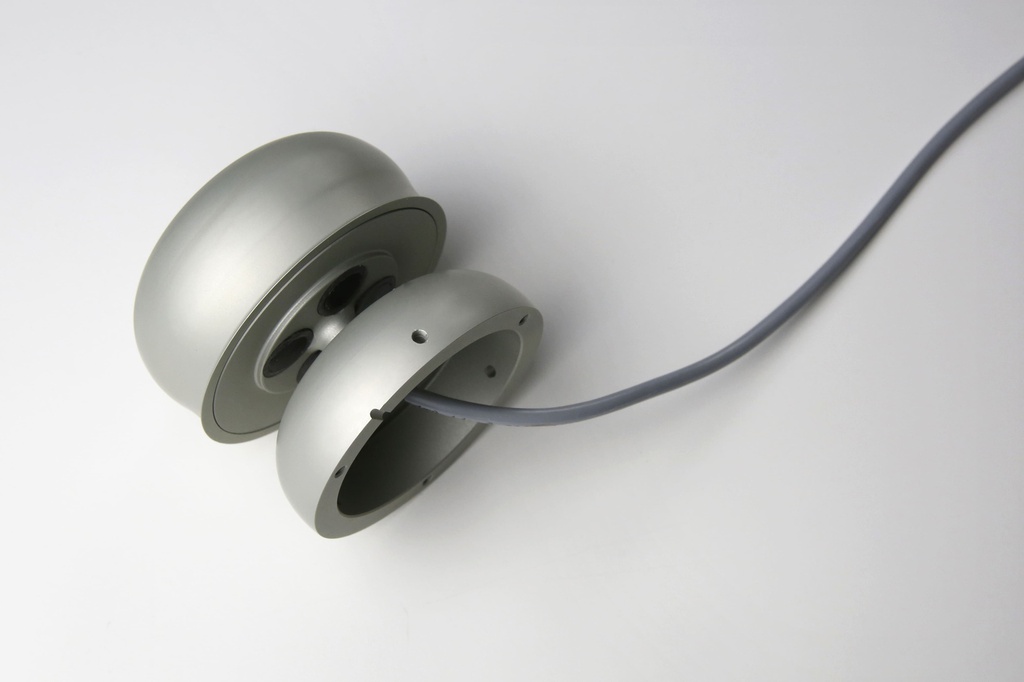

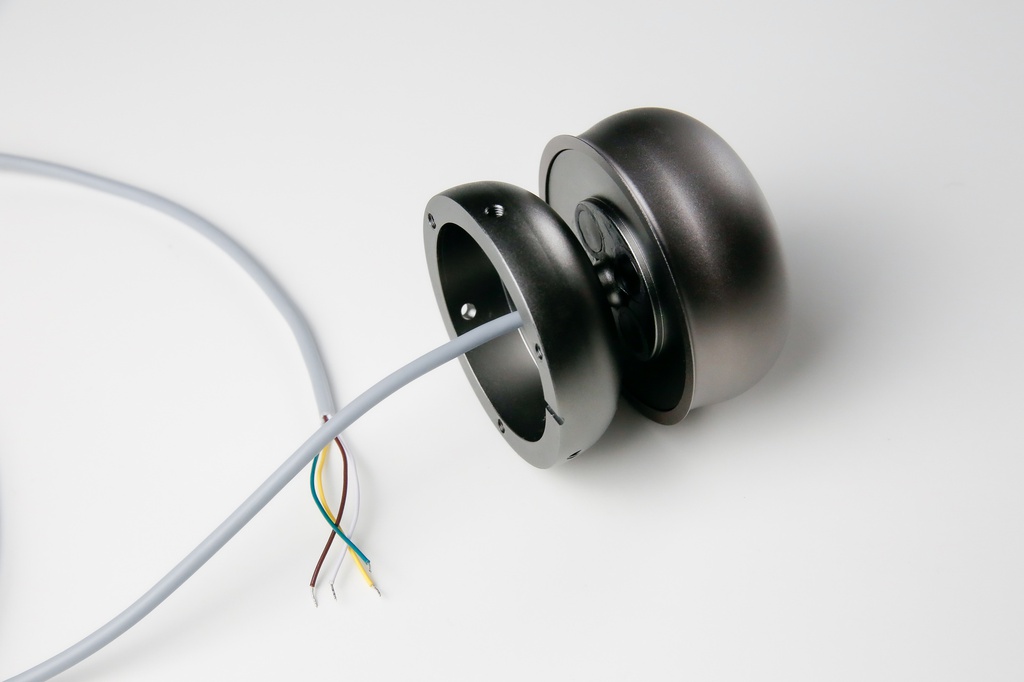

• Mechanical design has been revamped making the unit more robust and dependable.

• We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485 / MODBUS)


Customization Options for ULP Summit

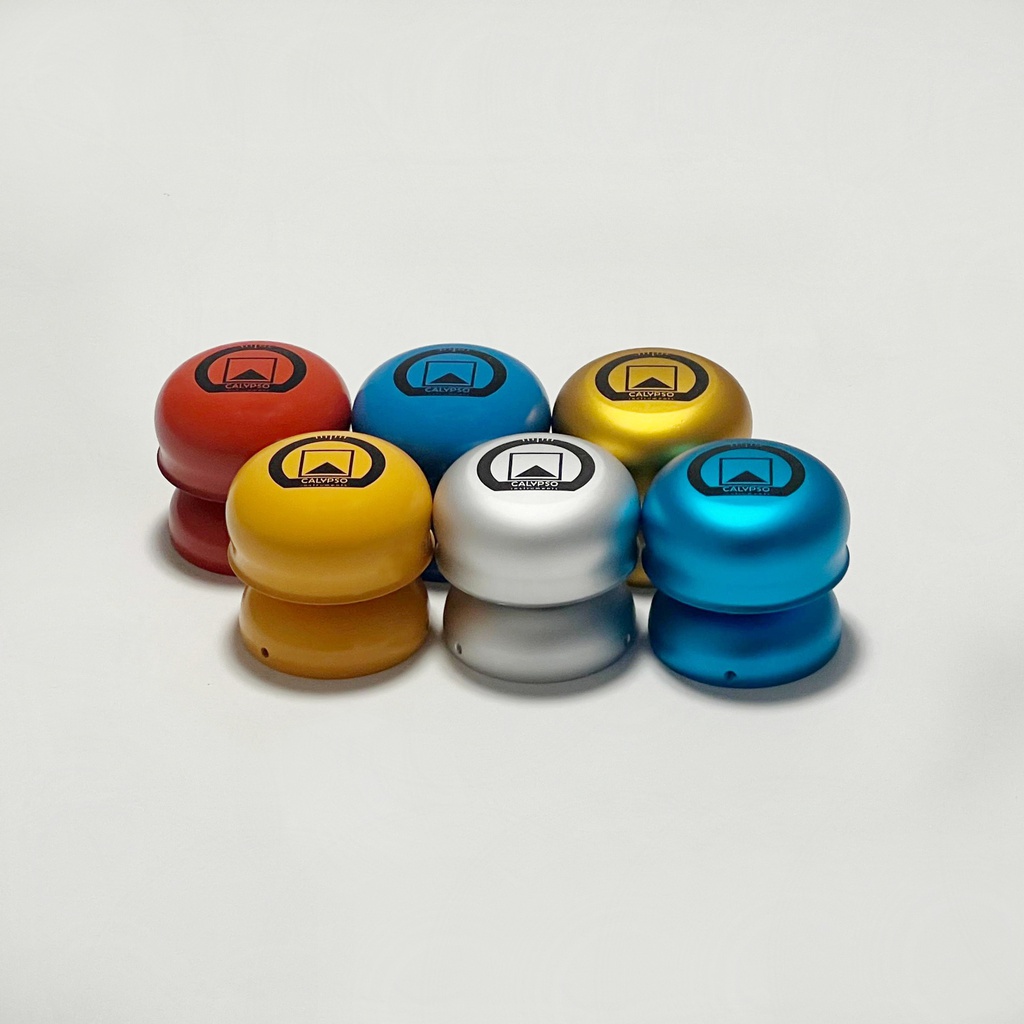

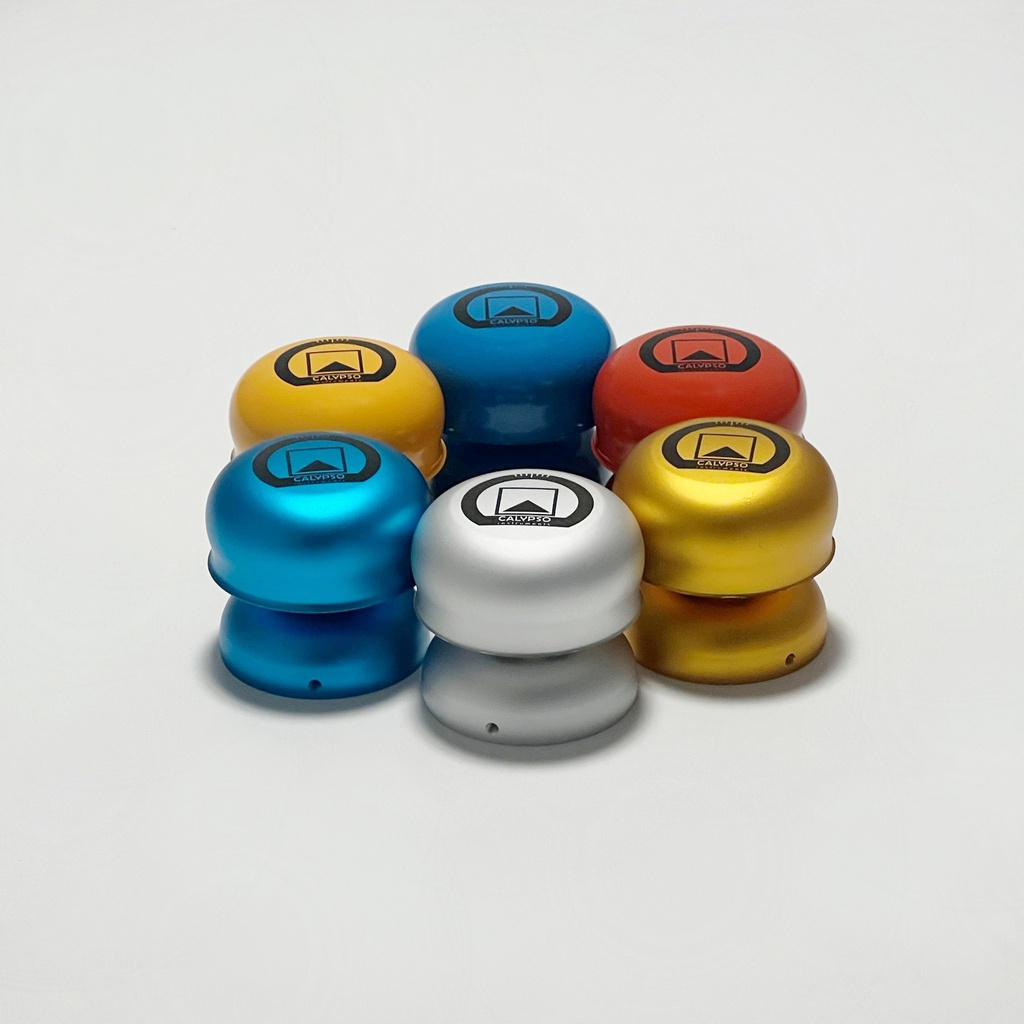

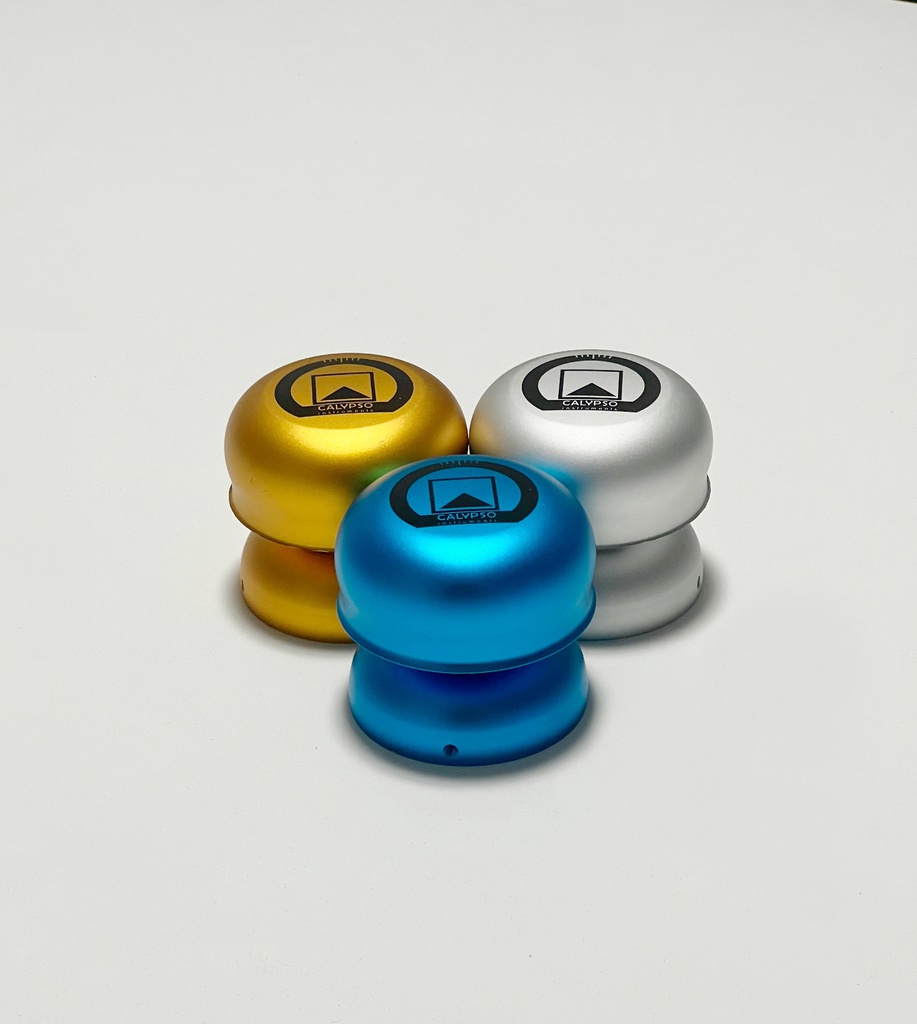

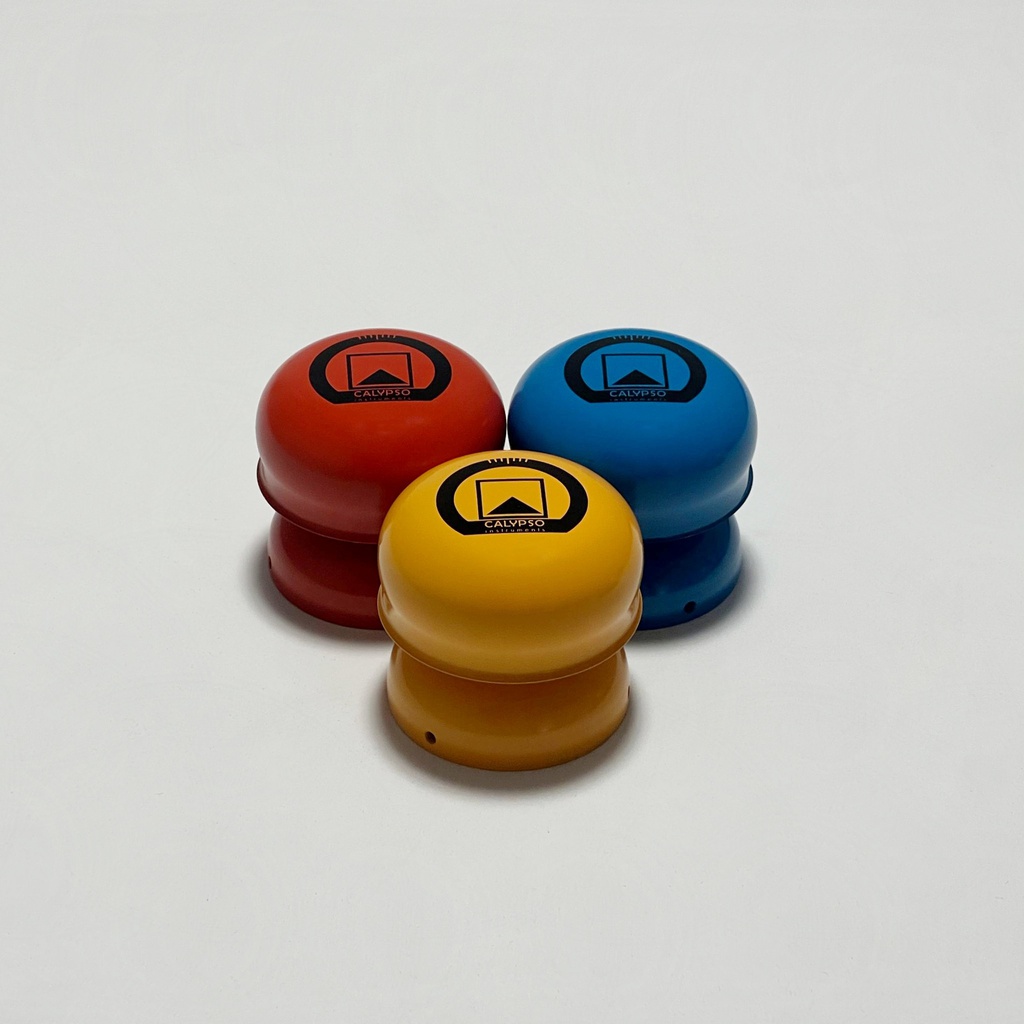

The ULP Summit aluminum product provides a premium branding experience with the option for custom painting and logo personalization.

For orders of 100 units or more, each unit can be painted in any color of your choice and customized with your logo, ensuring a high-quality, professional finish that enhances both aesthetic appeal and brand recognition.

Applications:

Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants

Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions

Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours

Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities

Firefighing: Wildfire, urban firefighting

Ballistics: Long Range Shooting

Drones and aviation: Airports/ UAV

Outdoors

The package contains the following:

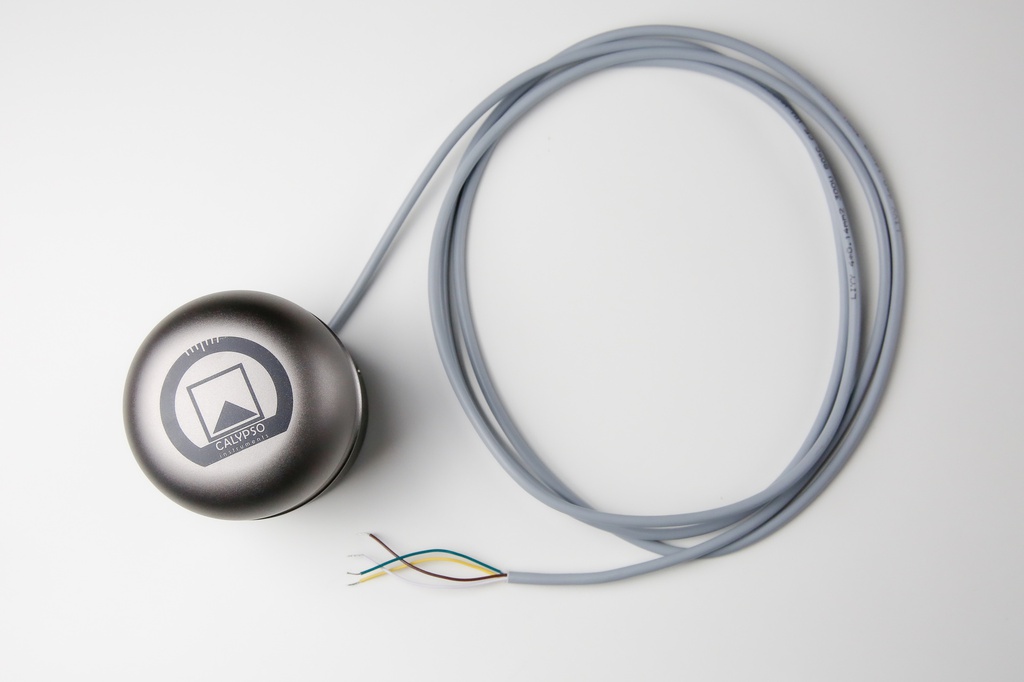

• Ultrasonic ULP SUMMIT Wind Instrument plus 2 meters (6.5 ft) cable for connection*

• Serial number reference on the side of the packaging.

• A quick user guide on the back of the packaging and some more useful information for the customer.

• M4 headless screw (x6)

• M4 screw (x3)

*USB converter cables are available here.

Internal Reference Codes:

-The SKU/CMI product number for the ULP Summit 45m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1030.

-The SKU/CMI product number for the ULP Summit 45m/s Wind Meter with UART / I2C protocol is CMI1041.

-The SKU/CMI product number for the ULP Summit 60m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1074.

-The SKU/CMI product number for the ULP Summit 60m/s Wind Meter with UART / I2C protocol is CMI1075.
