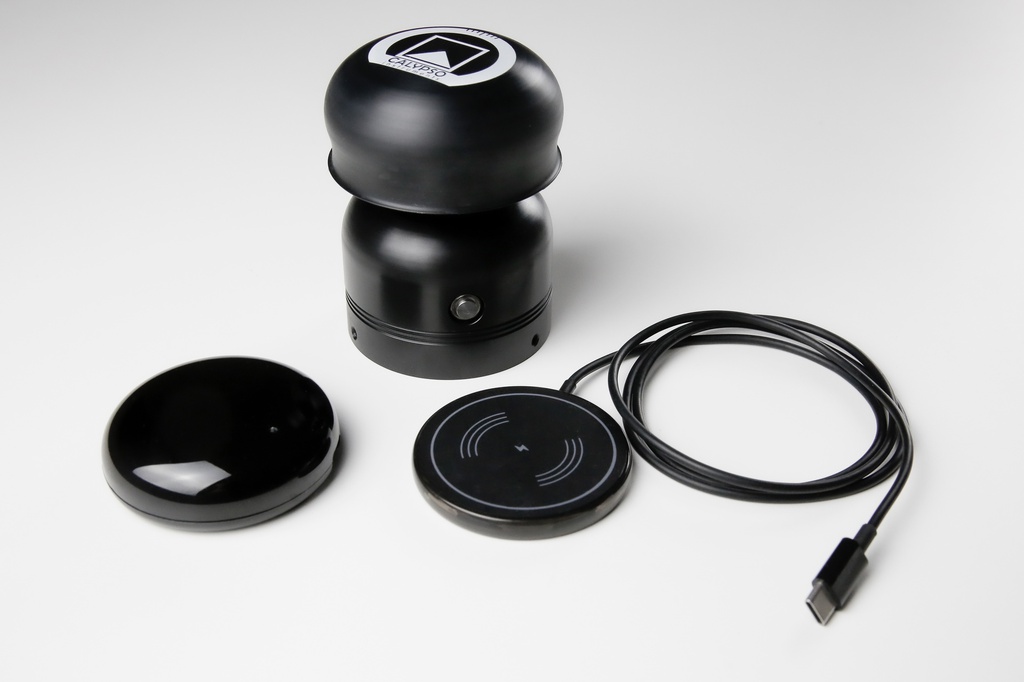

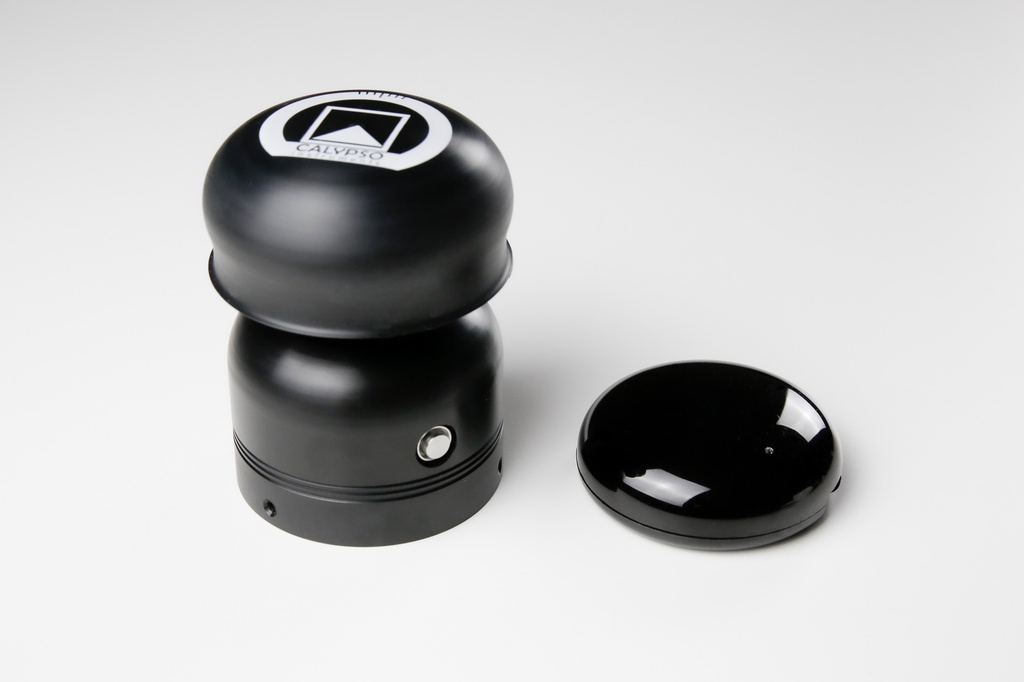

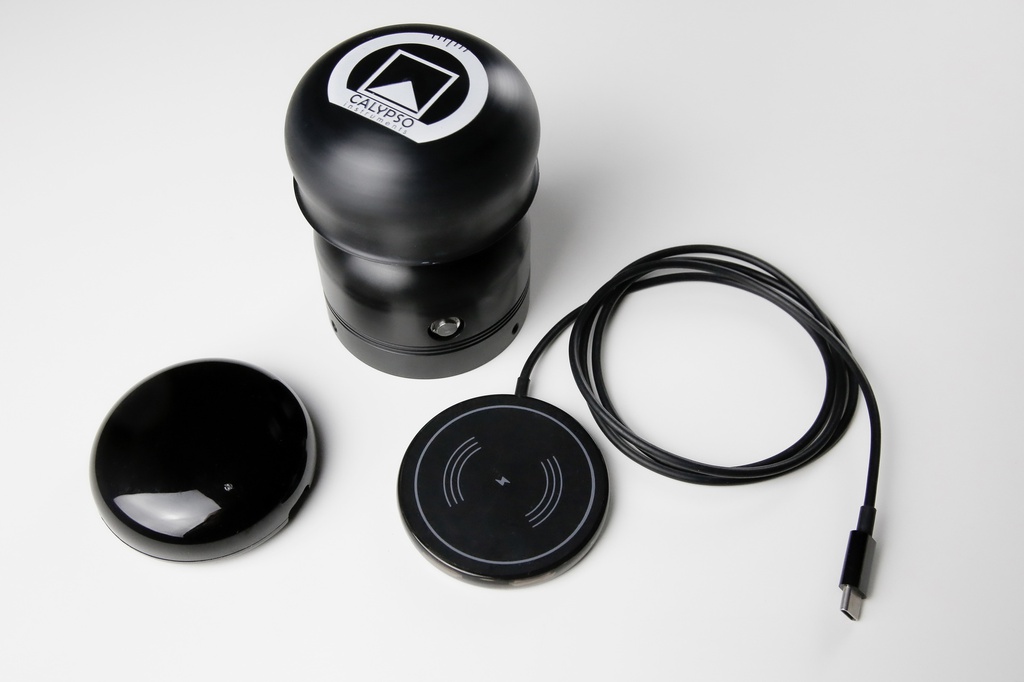

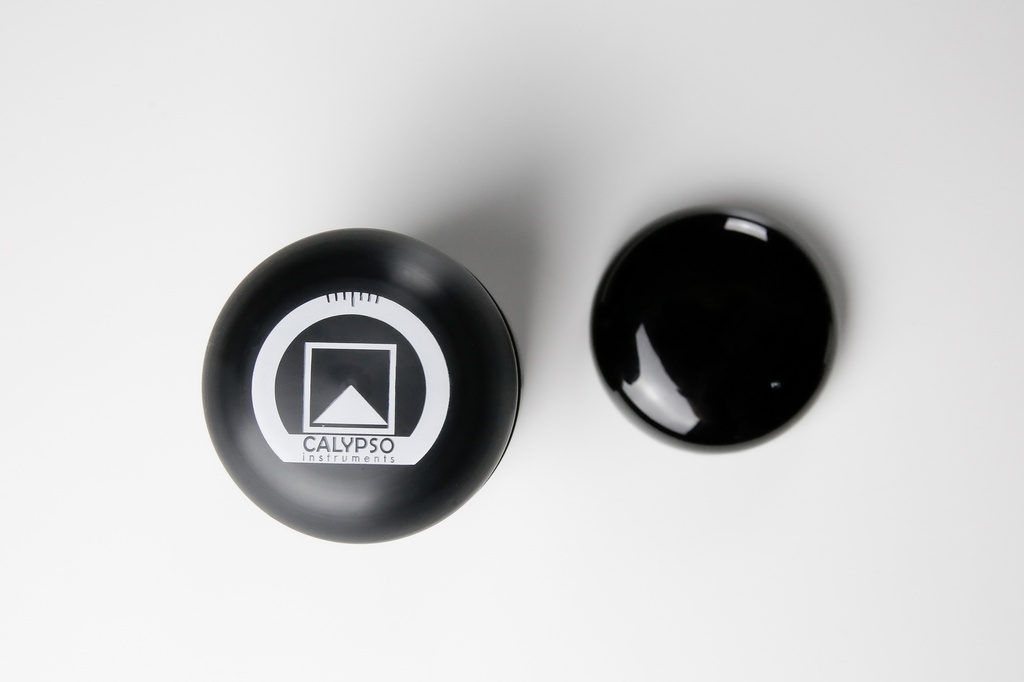

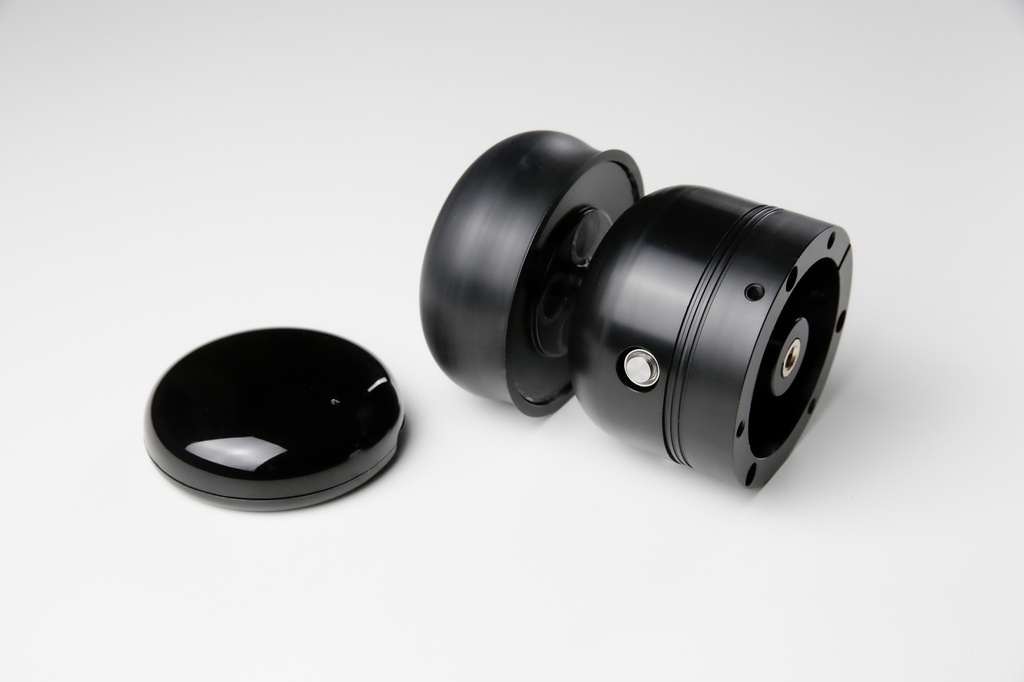

Ultrasonic wind meter LORA + RECEIVER

Ultra-Low-Power Ultrasonic wind meter.

The Ultra Low Power LoRa Instrument is a wireless, Bluetooth Low Energy (BLE) and battery-powered, compact ultrasonic anemometer, easy to install, simple to use and compatible with IOS, Android and Garmin watches. This wind meter allows you to get Wind Speed & Direction up to 1,86 miles (3 Km).

The ULP LoRa product was developed to meet the need for a device that can be placed in remote locations without requiring specific infrastructure, enabling data to be received from several kilometers away. This means the anemometer can be installed at a desired location, with data being received remotely “over the air” through a small receiver device that adapts the output format to the client’s preferred configuration. Various markets and situations would find the ULP LoRa particularly beneficial

 It's size makes it an ideal stand-alone wind meter of great value on a wide range of industries and applications.

Simple mount

The Ultra Low Power LoRa has a femalethread (1/4") perfect ot be mounted on any tripod

Wireless and Battery Powered

Wireless Charging QI- thanks to its Bluetooth connection, the ULP LoRa can be recahrges on a wireless charged on a wireless charged pad connected via USB to the power.

Applications:

Maritime sector:  wind recording at multiple coastal points

Golf: measure speed and direction across different area simultaneously

Ballistics: Long Range Shooting

Wind Energy Sector : Assesment viability of a wind farm

Get Anemotracker app for free!

Despite  the multiple apps available, we do provide a free app: Anemotracker. It will allow you to get wind speed and direction from your ULP LoRa. You can also save your wind meter data when tracking.

It includes 4 different modes : Marine, Golf, Meteo and Ballistics.

It will provide you with :

• Apparent wind speed and direction.
• Real wind speed and direction (if used on a vehicle or boat).
• Tracking of your wind data and exportation via excel or Google Earth.
• Available upgrade to the latest firmware version from the App-This new add-on will let the user to upgrade the Ultrasonic Portable to  the latest firmware version from Anemotracker app.
• Wind direction adjustable damping.
• Velocity Made Good calculations.
•  New derived data: stylish graphs with Means and deviations.
• Configuration from the units of measure: m/s, km/h, Kt.
•  Threshold alarm, direction offset, map mode, etc...

 Download it for IOS

 Download it for Android

 Download it for Garmin Connect IQ

Internal Reference Code: CMI1068

Material

Nylon polymer

Dimensions

Diameter : 70mm (2.76 in.)

Height : 95mm (3.74in.)

Weight : 213 grams (7.1 oz.)

Wind Speed

Range : 0.5-25 m/s (1.12 -56mph)

Accuracy : ±0.3 m/s at 10 m/s (0.22 mph at 22 mph

Threshold: 0.5 m/s (1.12 mph)

Wind Direction

Range : 0-359º
Accuracy : ± 1

Wind Information

speed & direction

Battery runtime

50 hours Active use Battery (Same batery runtime for the ULP LoRa and the receiver)

Data Output

ULP LoRa:

LoRa P2P (up to 3km direct line of sight). Our device is available for LoRa frequencies 868 and 915 MHz being added in the future.

Receiver:

LoRa P2P (up to 3 km direct line of sight), Bluetooth Low Energy 5.1 (up to 30 m direct line of sight)

Bluetooth Range

Version 5.1 or beyond

Firmware

Upgradable. via Bluetooth

IP Code

ULP LoRa: IPX8 protection grade

Receiver: IP 65

Mount

3xM3 base female  tripod thread

3xM4 lateral female thread UNC1/4"-20

3XM4 inferior female tripod thread-UNC1/4"-20

Data Output

Bluetooth

 Mast mount for ULP
